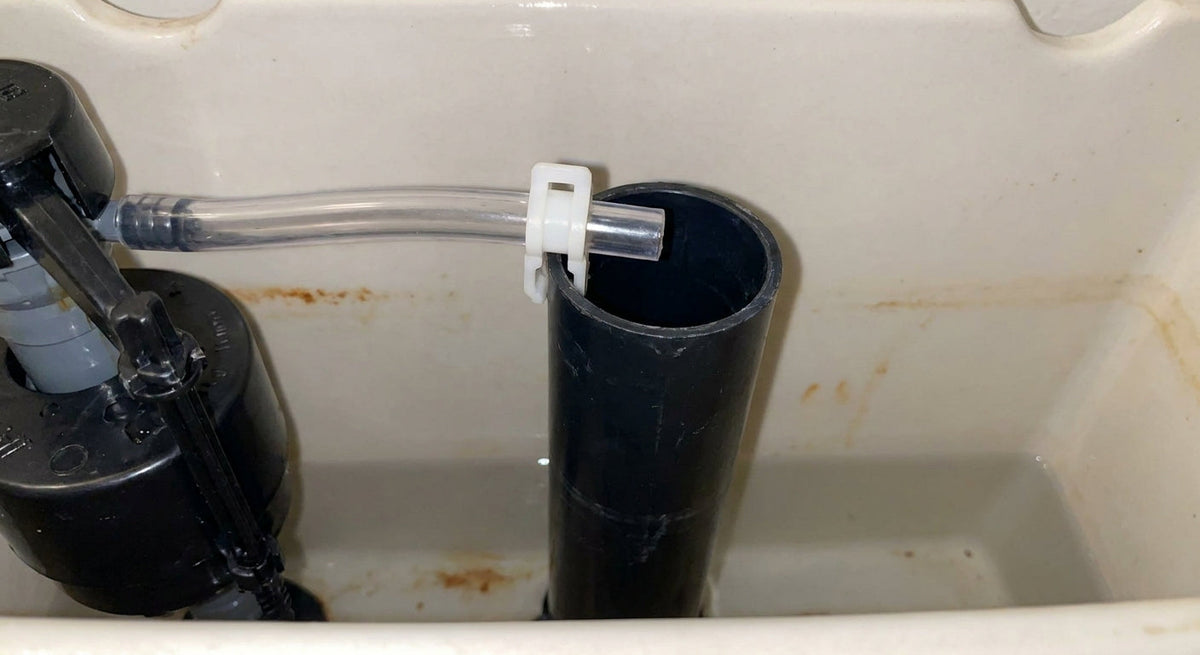

Open a toilet tank and one component stands near the center like a small chimney: the overflow tube. It is easy to assume that it matters only when something goes wrong. In reality, it plays a role during normal operation too.
Job 1: protect the tank from overfilling
The overflow tube provides a high-level escape path for water. If the fill valve fails to shut off correctly and the tank water rises too high, water can spill into the overflow tube and travel into the bowl instead of continuing to rise toward the top of the tank.
That is the emergency part of its job, and it is the reason the top of the overflow tube is positioned below the tank's rim.
Job 2: help refill the bowl after a normal flush
The second job is less obvious. During the refill cycle, a small refill tube connected to the fill valve normally sends a controlled stream of water into the overflow tube. That water travels through the toilet's internal passages and ends up in the bowl.
At the same time, the fill valve is replenishing the tank itself. So after a flush, two related things are happening:
- The tank is filling back to its operating level.
- The bowl is receiving refill water through the refill-tube-to-overflow-tube pathway.
This is why the bowl ends up with a stable water level again after the flush is complete.
The overflow tube and refill tube are different parts
The names are easy to mix up:
- Refill tube: the small flexible tube coming from the fill valve.
- Overflow tube: the larger vertical tube inside the tank.
The refill tube normally points into or attaches near the top of the overflow tube.
Why this pathway matters for bowl cleaning
Understanding the water path explains an important distinction between treating the tank water and treating the water that is specifically routed toward the bowl. A product placed directly in the main tank reservoir spends much of its time in water that surrounds tank hardware. A device that works with the refill pathway can target water headed toward the bowl more directly.
That plumbing distinction is the idea behind the phrase clean the bowl, spare the tank.
Common signs that the refill pathway needs attention
If the small refill tube is disconnected, kinked, aimed incorrectly, or positioned so water is not entering the overflow tube as intended, the bowl may not refill normally after a flush. A weak or unusually low bowl water level can therefore be a reason to inspect this simple connection.
For a deeper look at the smaller tube, see why your toilet bowl refills after every flush: the refill tube explained.
Bottom line
The overflow tube is both a safety feature and part of the bowl-refill system. Once you understand that dual role, the plumbing inside a toilet tank becomes much less mysterious, and the route from fill valve to refill tube to overflow tube to bowl starts to make sense.
