Watch a toilet closely after the loud part of the flush is over. The tank is refilling, but something else is happening at the same time: water is quietly returning to the bowl.
The unsung hero of that second job is a small flexible hose called the refill tube.
The tank and bowl are separate reservoirs
It is easy to picture a toilet as one big water system, but the tank and bowl do different jobs.
The tank stores water for the next flush. The bowl holds a standing water seal that blocks sewer gases and provides the starting condition for the next flush.
After you flush, both need to recover.
The fill valve does two jobs at once
As the tank water level falls, the fill valve opens. Most incoming water goes directly into the tank.

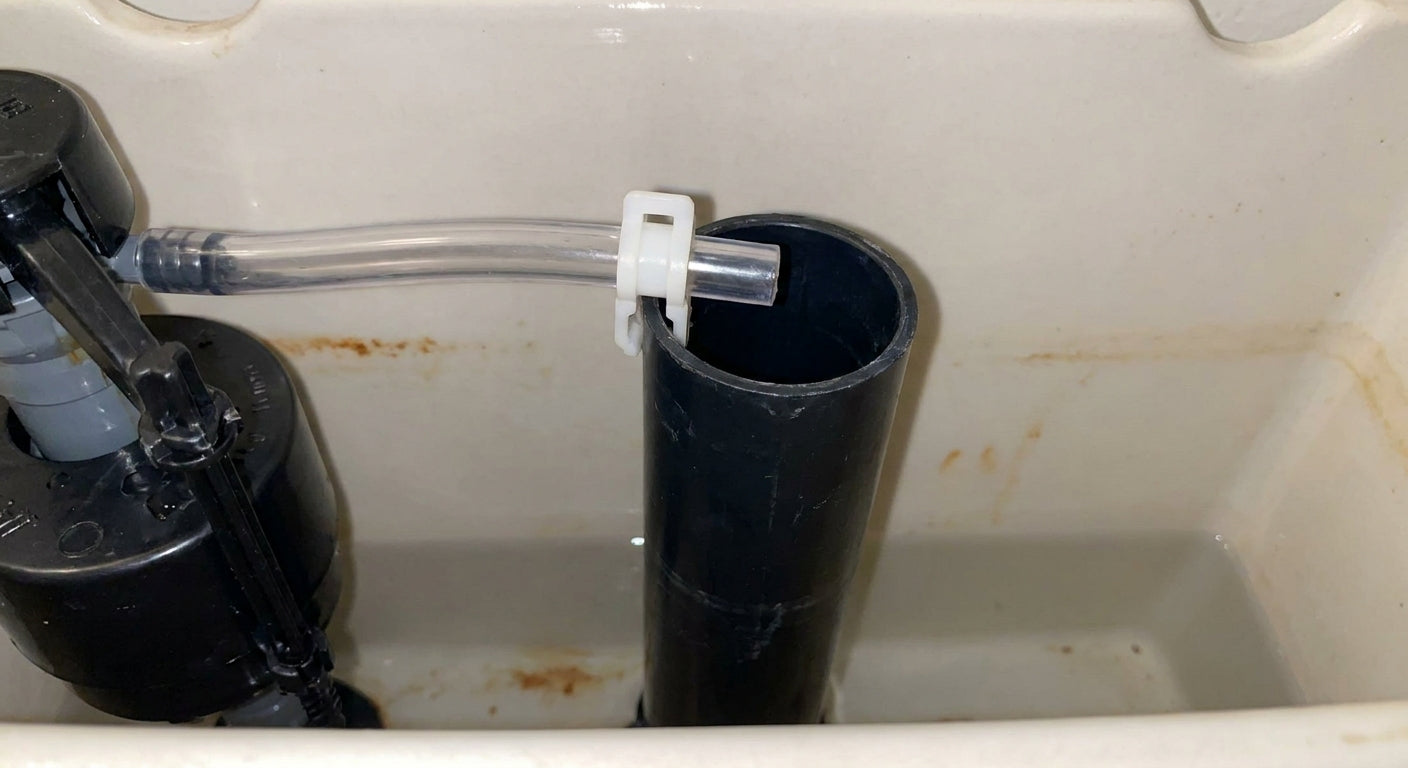

But the fill valve also diverts a smaller stream into the refill tube. That tube normally points into the top of the overflow pipe.
Why send water into an “overflow” pipe on purpose?
Because the overflow pipe is connected to the flush-valve passage that leads toward the bowl. During normal refill, water entering the top of the overflow pipe travels to the bowl and restores its standing water level.
The word “overflow” describes the pipe’s emergency job when tank water gets too high. It also serves as the normal bowl-refill route.
Why the bowl stops filling at a certain level
The bowl is shaped around an internal curved trapway. That trap creates the visible standing water level. Add enough water and the excess passes over the trap’s effective high point and continues toward the drain.
So the refill tube is not trying to fill the bowl to the rim. It is replacing the water lost during the flush until the bowl returns to the level set by its geometry.
What happens if the refill tube comes loose?
The tank may still refill perfectly because the main fill-valve flow goes directly into the tank. But less water reaches the bowl.
The result can be a bowl that ends the cycle with unusually low standing water even though everything under the lid appears full.
That is a useful diagnostic clue: full tank + low bowl = inspect the refill path.
Why you should not shove the tube deep into the overflow pipe
Toilet manufacturers commonly use a clip or air-gap arrangement that keeps the refill-tube outlet above the overflow opening. Do not improvise a deeply submerged tube connection. Proper routing helps avoid unintended siphoning and keeps the refill system behaving as designed.
Can the toilet send too much refill water to the bowl?
Yes. Once the bowl reaches its normal trap-controlled level, additional water simply flows onward into the drain. A refill setting that sends more water than the bowl needs can waste water without making the bowl any “more full.”
Some modern fill valves let the bowl-refill ratio be adjusted. Follow the toilet or fill-valve manufacturer’s instructions rather than guessing.
A two-minute refill-tube check
- Remove the tank lid carefully and place it somewhere safe.
- Find the small tube coming from the fill valve.
- Confirm that it is securely routed toward the overflow pipe using the intended clip or connection.
- Flush with the lid off.
- Watch for a steady small stream during refill.
- Confirm the stream stops when the fill valve shuts off.
If water is spraying elsewhere, the tube is detached, or the toilet keeps running after the tank is full, correct the plumbing issue using the manufacturer’s instructions before adding accessories.
Why this tiny tube matters to Flush Frog
The refill tube creates a dedicated stream whose destination is already the bowl. Flush Frog uses that path by routing the refill stream through a dispenser before it enters the overflow pipe.
That is the whole mechanical idea: work with the water path the toilet already has.
