Overflow-pipe toilet dosing works by putting cleaner in the path your toilet already uses to refill the bowl after a flush. On a typical gravity toilet, the fill valve sends a small stream of water through a refill tube into the overflow pipe. That water travels down into the bowl. A clip-on overflow doser sits in that stream, so refill water picks up cleaner before it reaches the bowl. The tank water that surrounds the flapper stays out of that chemistry path.
That one plumbing detail is why overflow dosing and drop-in tank tablets are not the same category, even when both use a tablet-shaped cleaner. Same bathroom problem. Different place the chemistry lives.
The parts that make overflow dosing possible

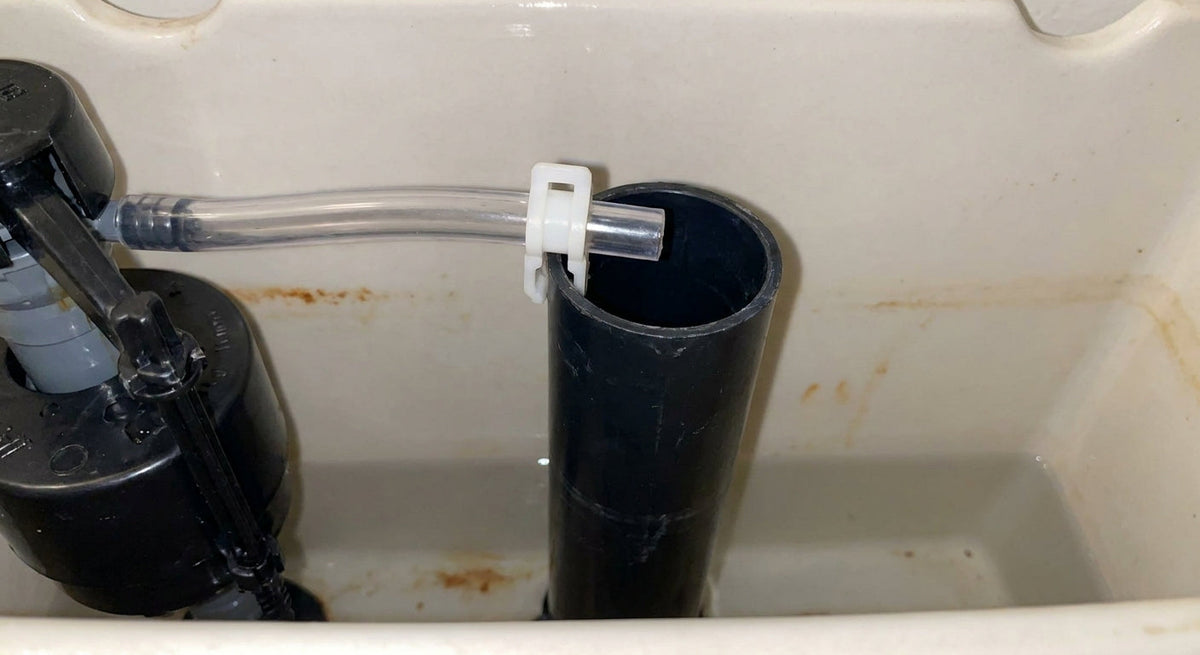

You do not need to be a plumber to follow this. Lift the tank lid on a common two-piece gravity toilet and you will usually see:
- Fill valve — the tall assembly that opens after a flush to refill the tank.
- Refill tube — a thin flexible tube that clips or sits into the top of the overflow pipe.
- Overflow pipe (overflow tube) — the open vertical tube in the tank. Extra tank water spills into it if the fill valve sticks. After every flush, refill water also travels through it on purpose to top up the bowl.
- Flapper — the rubber seal at the bottom of the tank. When you flush, it lifts so tank water can rush into the bowl.
For a closer look at the refill step alone, see why the bowl refills after every flush. For the overflow tube’s other job (flood protection), see what the overflow tube actually does.
What happens on a normal flush, step by step
- You flush. The flapper lifts. Most of the tank water empties into the bowl and leaves through the trap.
- The flapper drops and seals. The fill valve opens to refill the tank.
- At the same time, a smaller stream leaves the fill valve through the refill tube and enters the overflow pipe.
- That stream runs down the overflow path and into the bowl, restoring the waterline.
- When the tank reaches the float set point, the fill valve shuts off. Both tank refill and bowl refill stop.
Overflow-pipe dosing inserts a dispenser into step 3–4. Refill water contacts the cleaner while it is already headed to the bowl. The large volume of tank water used for the flush itself never has to sit overnight in a chemical bath.
How that differs from a drop-in tank tablet
A classic tank tablet dissolves in the standing water inside the tank. Every flush uses that chemically treated tank water. Between flushes, the flapper, flush valve seat, and other rubber parts stay submerged in it.
That is why many toilet makers warn against in-tank tablets: not because “cleaner is bad,” but because prolonged chlorine or similar chemistry in the tank can harden, swell, or shorten the life of rubber seals. A running toilet after months of tank tablets is a common follow-on complaint.
Overflow dosing flips the location. The tablet or cartridge lives on the overflow/refill path. Bowl water gets a dose. Tank water stays plain water for the flapper. For a side-by-side of those two approaches, read toilet tank tablets vs overflow-pipe cleaners.
What overflow dosing is for (and what it is not)
Overflow dosing is a maintenance tool. Each flush that refills the bowl can leave a light cleaner film along the waterline and bowl surface. That helps slow the next mineral film or biofilm layer after you have already cleaned an established ring.
It is not a magic eraser for years of hard-water scale. If the ring is already rough, chalky, rust-colored, or layered, remove it first with the right chemistry for that deposit, then prevent. The hub page toilet bowl rings: causes, removal, and prevention walks through mineral vs iron vs film so you do not treat every ring the same way.
Also: dosing the bowl does not unclog a drain, fix a phantom flush, or replace a worn flapper. Those are separate plumbing jobs.
How a clip-on overflow cleaner is installed in practice
Products differ, but the plumbing idea is consistent:
- Confirm you have a gravity-flush toilet with an accessible overflow tube in the tank.
- Load the cleaner the product is designed for (Flush Frog uses a standard 3-inch bromine tablet you buy separately; the device does not include tablets).
- Clip or seat the dispenser on the overflow so the refill tube still feeds into the dosing path.
- Flush once and watch: you should see refill water enter the overflow path and the bowl waterline return.
If the refill tube is disconnected or aimed into the tank instead of the overflow, the bowl may refill poorly and a doser in the overflow path will not see much flow. Aim the tube where the manufacturer intended before blaming the cleaner.
Will overflow-pipe dosing fit your toilet?
It fits the common case: a gravity toilet with a visible overflow tube and a refill tube that can reach it. It is a poor match for designs without that accessible path, and it is not a substitute for reading your toilet’s manual.
There is no honest universal brand-fit checklist that covers every remodel, dual-flush valve, and aftermarket fill valve. If you can see the overflow tube and the refill tube can feed it, you are in the usual design space. If you cannot, do not force a clip where it does not belong.
Hard water, iron stains, and why location still matters
Hard water leaves calcium and magnesium scale. Well water can add iron or manganese staining. Overflow dosing does not change your water supply. What it changes is whether maintenance chemistry reaches the bowl every refill without bathing the tank seals.
For removal, match the cleaner to the deposit: acids for mineral scale, rust-oriented cleaners for iron stains, mechanical cleaning for soft film. Never mix acidic descalers with chlorine-releasing products. Rinse and follow labels when you switch chemistries.
Where Flush Frog sits in this picture
Flush Frog is a clip-on overflow-pipe dispenser for that refill path. It is built as a flapper-sparing alternative to leaving a tablet in the tank: dose the bowl on refill, keep tank water as tank water. After a one-time clean, that is the prevention job: reduce how fast the waterline rebuilds a ring, not rewrite the laws of hard water.
If you are comparing options, start with the plumbing question first (where does the chemistry sit?), then the cleaning question (is the bowl already clean?), then convenience. Overflow-pipe dosing answers the first question clearly. The rest still depends on your water and how you maintain the bathroom.
Quick checklist
- Refill tube → overflow → bowl is the dosing path.
- Tank tablets dissolve in tank water around the flapper; overflow dosers do not.
- Clean an established ring first; dose afterward for prevention.
- Do not mix reactive cleaners in the bowl.
- Confirm an accessible overflow tube before you buy any overflow clip.
Want the broader ring playbook? Return to the toilet bowl rings hub, or keep going with how to remove a toilet bowl ring and why rings keep coming back.
