To install an overflow-pipe toilet cleaner, lift the tank lid, find the vertical overflow pipe and the skinny refill tube that drips into it, clip the dispenser onto that pipe, drop the refill tube into the dispenser inlet, load one tablet, and flush once to confirm cleaner reaches the bowl. On a typical gravity-flush toilet that takes about three minutes and no tools. The cleaner rides the refill water into the bowl — it does not soak the flapper in the tank.
This guide covers finding the overflow pipe, the clip-and-connect steps, the tablet load, a quick fit check, and common mistakes. If you want the plumbing why, see how overflow-pipe dosing works.
What you need before you start
You need a gravity-flush toilet with a visible overflow pipe in the tank and a refill tube from the fill valve. Most two-piece and one-piece home toilets work that way. Pressure-assist and some commercial flushometer toilets do not use the same refill path — this install does not apply there.
You also need one 3-inch bromine (BCDMH) tablet you buy separately. Flush Frog does not include tablets in the box. Replace the tablet when depleted. Actual tablet life varies with flush frequency, refill flow, water conditions, and tablet formulation. Flush frequency still matters: a busy bathroom uses a tablet faster than a guest bath.
Optional: a towel for drips and a phone light so you can see under the lid. You do not need a wrench, plumber’s putty, or a shutoff of the water for a normal clip-on install.
Labeled diagram of the overflow pipe (also called overfill pipe) and refill tube. This is a tank-parts diagram, not a photo of a Flush Frog clipped in place.
Find the overflow pipe and refill tube
Lift the tank lid and set it somewhere safe. Inside a standard tank you will see:
- Fill valve — usually on the left, connected to the supply line under the tank.
- Overflow pipe — a vertical open tube in the middle of the tank. If the tank overfills, water spills into this pipe and into the bowl instead of onto the floor.
- Refill tube — a thin flexible hose from the fill valve that normally hangs into the top of the overflow pipe. After each flush it sends a stream of water down that pipe to refill the bowl.
- Flapper — the rubber seal at the bottom of the overflow tower that opens on flush.
The refill tube is the path that matters. An overflow-pipe cleaner sits in that stream so refill water picks up cleaner and carries it into the bowl. Tank water around the flapper stays out of that chemistry. That is the practical difference from a drop-in tank tablet — see tank tablets vs overflow-pipe cleaners.

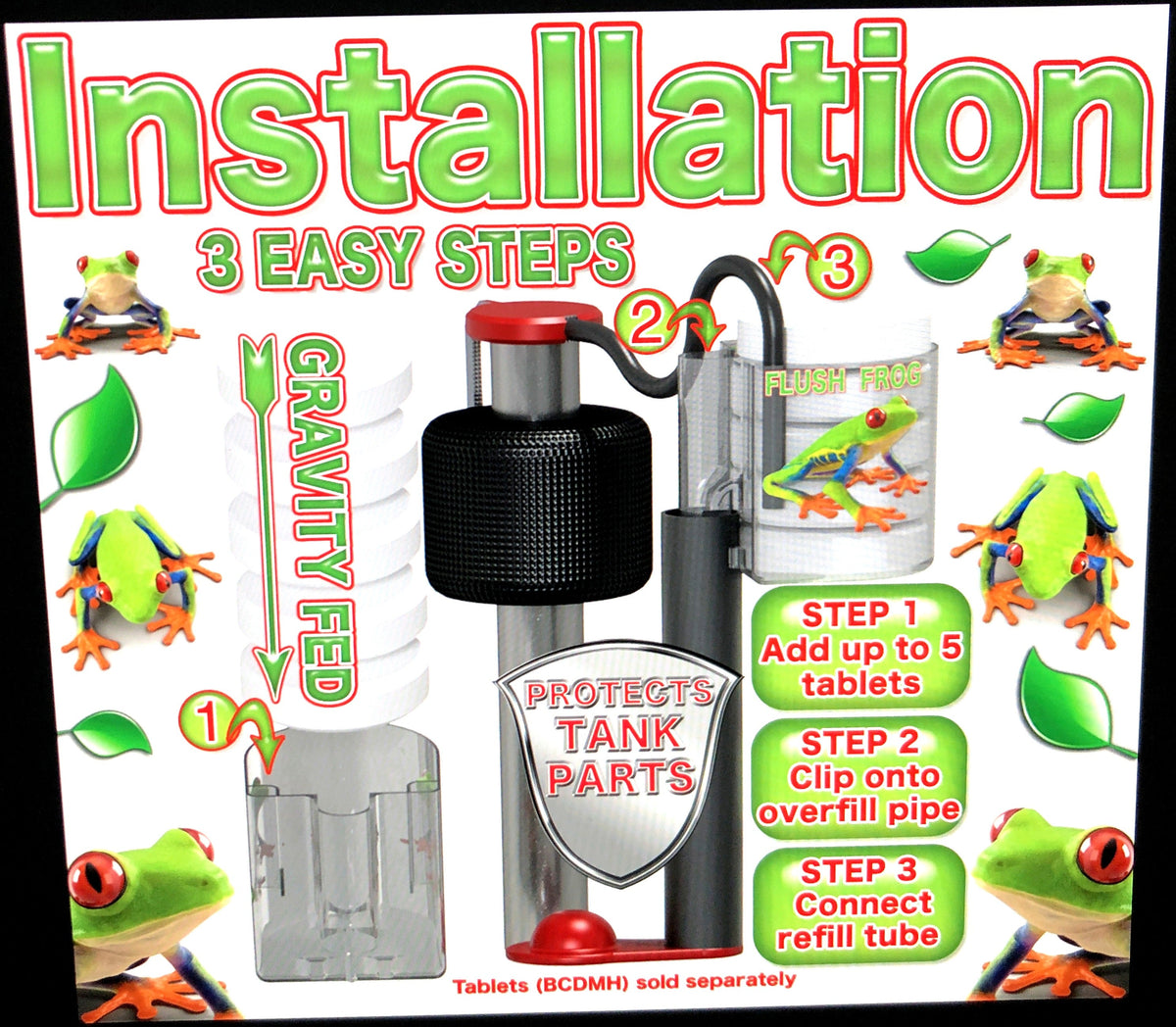

Owner install graphic of Flush Frog on the overflow pipe — load a tablet, clip on, connect the refill tube. Real product graphic, not a generated stained-bowl photo.
Step-by-step: clip on, connect, load, flush
- Clear the overflow rim. Lift the refill tube out of the overflow pipe and hold it aside. Wipe any calcium crust off the top of the pipe so the clip seats cleanly.
- Clip the dispenser on the overflow pipe. Orient it so the inlet faces where the refill tube can reach and the lid still closes. Push until the clip grips the pipe firmly. It should not spin freely or sit cocked against the fill valve.
- Connect the refill tube into the dispenser. Push the free end of the refill tube into the dispenser inlet (or the marked port on your model) so the stream will run through the cleaner, then down the overflow into the bowl. Do not leave the tube dripping beside the dispenser into open tank water — that skips the dose.
- Load one 3-inch bromine (BCDMH) tablet. Buy it separately. One tablet in the chamber is enough to start. Close any lid or door on the dispenser. Extra tablets can wait in the spare slots; you do not need five on day one.
- Close the tank lid and flush once. Watch the bowl. You should see refill water arrive as usual. With many tablets the water may tint slightly; with others the dose is clearer. What you want is confirmation that the refill path still fills the bowl and the tube stayed seated.
That is the whole install. Put the tank lid back. Keep the spare tablets dry in the box or in the unused slots.
How do you know it is working?
After the flush, the bowl should refill to its normal waterline. The refill tube should stay plugged into the dispenser, not kicked out beside it. If the tablet has a dye, a light tint in the bowl after refill is a useful signal. If the tablet is undyed, trust the mechanical path: tube in, clip tight, bowl refill normal.
Overflow dosing is maintenance for the bowl waterline after you have already scrubbed an existing mineral ring. It does not dissolve years of scale by itself. Removal still wants acid and a brush first — then prevention. Map of stain types and prevention is on the toilet bowl rings hub.
Will an overflow-pipe cleaner fit my toilet?
Fit is about plumbing, not a brand checklist. If you lift the lid and see a vertical overflow pipe with a refill tube from the fill valve, a clip-on overflow cleaner is designed for that layout. Compact tanks with almost no clearance between the overflow and the fill valve can be tight — rotate the clip or seat it slightly lower before you force anything. Dual-flush towers still usually have an overflow path; look for where the refill tube ends.
If there is no overflow pipe and no refill tube into one, stop. Do not jam a clip onto a sealed pressure vessel or a flushometer. Those toilets need a different product category.
Common install mistakes
- Refill tube left in the open tank. Then refill water never passes through the dispenser. Push it into the inlet.
- Clip loose or spinning. Reclean the pipe rim and reseat. A loose clip can dump the tablet into the tank on the next flush.
- Old tank tablet still dissolving in the tank. Remove it and any cage. You want bowl dosing, not a second chemistry bath around the flapper.
- Expecting it to erase a thick ring overnight. Scrub the crust first. Then use overflow dosing so the next film does not lock on.
- Mixing leftover acid with bleach in the bowl “to help.” Never mix bleach and acid. Chlorine gas is not a cleaning tip.
Tablet load, spares, and when to replace
Load one compatible 3-inch BCDMH bromine tablet, sold separately. Replace it when depleted. Actual tablet life varies with flush frequency, refill flow, water conditions, and tablet formulation. Duration is the tablets and how often you flush — not a magic number for the plastic clip. If your home is on septic, choose a septic-safe tablet from the tablet maker’s label. Do not treat the clip-on device itself as a septic rating.
When the tablet is a thin wafer or gone, open the tank, drop in the next one, close the lid. That is the refill. No cartridge lock-in. No subscription required.
After install: prevention, not a skip-scrub forever
An automatic overflow cleaner is maintenance. You still wipe the seat, and you still scrub if someone lets a ring build for months. The win is that every flush sends a little cleaner into the bowl, where the waterline lives, instead of bathing the flapper in the tank.
Flush Frog is that clip-on for gravity toilets. 1 Pack is $14.99 to try one bathroom. 4 Pack is $34.99 if more than one toilet has the hard-water waterline problem. Install is the same on each: find the overflow, clip, connect the refill tube, load one tablet, flush.
For why rings return after a scrub, read why toilet bowl rings keep coming back. For the full stain map, start at the toilet bowl rings hub.
